Ion exchange resins applications
A general overview

Contents

1. Water treatment

1.1. Softening
1.2. Dealkalisation
1.3. Demineralisation
1.4. Mixed bed polishing
1.5. Condensate polishing
1.6. Ultrapure water
1.7. Drinking water

2. Sugar industry

2.1. Softening of water used for sugar extraction
2.2. Softening of sugar juices before evaporation
2.3. The NRS softening process
2.4. The Gryllus softening process
2.5. Demineralisation of sugar juices before evaporation
2.6. Colour removal from sugar syrups after evaporation
2.7. The Quentin process
2.8. Sugar recovery from molasses
2.9. Sucrose inversion
2.10. Chromatographic separation
2.11. Glucose treatment

3. Other applications in the food industry

3.1. Dairy products
3.2. Beverages
3.3. Fruit juices
3.4. Recovery of polyphenols
3.5. Citric acid
3.6. Aminoacids
3.7. Sorbitol demineralisation
3.8. Gelatine demineralisation

4. Applications in the chemical industry

4.1. Recovery or removal of metals
4.2. Caustic soda and chlorine production
4.3. Phenol
4.4. Hydrogen peroxide purification
4.5. Removal of aldehydes
4.6. Selective removal of various elements

5. Catalysis

5.1. Alkylation
5.2. Condensation
5.3. Esterification
5.4. Etherification
5.5. Dehydration
5.6. Hydrogenation

6. Pharmaceutical industry

6.1. Extraction and purification of antibiotics
6.2. Slow-release formulations
6.3. Resins used as drugs
6.4. Taste-masking
6.5. Production chromatography

7. Miscellaneous applications

7.1. Mining industry
7.2. Enzyme immobilisation
7.3. Hydroculture
7.4. Oil removal by coalescence


1. Applications of ion exchange resins in water treatment

Water softening and demineralisation are also described with chemical reactions in the IX basics page. And regeneration methods are in another page.

Water tap1.1. Softening

A strongly acidic cation exchange resin is used here in the sodium form. The ions forming hardness, essentially calcium and magnesium, are exchanged for the sodium ions of the resin, and the softened water can be used for several purposes:

Resins used: Treated water quality:
Residual hardness < 0.02 meq/L (1 mg/L as CaCO3) with reverse flow regeneration

Regeneration: brine (NaCl as a 10 % solution)

1.2. De-alkalisation

In a water containing bicarbonates — most waters in Western and Central Europe do — calcium and magnesium associated with bicarbonate ions are exchanged for hydrogen ions from a weakly acidic cation exchange resin. This is called removal of temporary hardness. The treated water contains carbon dioxide that can be removed with a degasifier. The salinity of the treated water is lower than that of the feed water. Dealkalisation is used:

Resins used: Treated water quality
Residual alkalinity = very low (endpoint at 10 % of the raw water alkalinity)
Residual hardness = permanent hardness (TH – Alk)

Regeneration : Acid (preferably HCl at 5 % concentration)

1.3. Demineralisation

All ions must be removed from water. Therefore the water passes first through cation exchange resins in the hydrogen form, then through anion exchange resins in the hydroxyl or free base form. All cations are replaced by ions from the cation resin, and all anions for the ions of the anion resin. These H+ and OH ions recombine to create new water molecules (H2O). The treated water contains only traces of sodium and silica.

Resins used:

The use of weakly functional resins depends on the raw water analysis and plant size.

Treated water quality
Conductivity: 0.2 to 1 µS/cm with reverse flow regeneration
Residual silica 5 to 50 µg/L depending on the silica concentration in the feed water and the quantity of caustic regenerant.
These values are lower than those obtained with other technologies, such as reverse osmosis or distillation.
Note that the pH value should not be used as a process control, as it is impossible to measure the pH of a water with less than say 5 µS/cm conductivity.

Regeneration
Cation exchange resins: strong acid (HCl or H2SO4)
Anion exchange resins: caustic soda (NaOH)

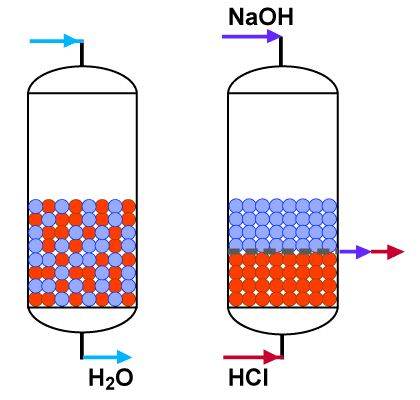

1.4. Mixed bed units

1.4.1. Polishing mixed beds

MBWhen an even better treated water quality is required, close to that of totally pure water, a polishing vessel is installed after a primary demineralisation plant. It is filled with cation and anion exchange resins, which must be mixed during the loading run, but separated for regeneration. The separation is carried out with an upflow backwash step, and requires resins with appropriate particle sizes and densities.

Resins used:

For specific applications, such as ultrapure water or circuits in nuclear power plants, other highly purified grades are also used.

Treated water quality
Conductivity: 0.055 to 0.1 µS/cm
Residual silica: 1 to 10 µg/L.
Note that the pH value should not be used as a process control, as pH meters are unable to operate at 1 µS/cm conductivity or below.

Regeneration
Cation exchange resins: strong acid (HCl or H2SO4)
Anion exchange resins: caustic soda (NaOH)

1.4.2. Working mixed beds

For low salinity waters, or when only moderate demineralised water volumes are required, mixed bed units can be installed and fed directly with city water or reverse osmosis permeate. These units are called "Working MBs". The resins used are essentially the same as those for polishing mixed bed units. A special case is Service De-Ionisation (SDI) — using mixed bed columns or cartridges regenerated off-site — described in a separate page.

Leibstadt1.5. Condensate polishing

Steam boilers in nuclear and fossil-fuelled power stations require extremely pure demineralised water to prevent deposits on the turbine blades and avoid corrosion in the steam circuit. In many cases, the condensate circuit is fitted with mixed beds. The units are operated at a high specific flow rate and the resins must be very tough. See details in the condensate polishing page.

Semiconductor1.6. Ultrapure water

In the production of integrated circuits, semiconductor chips and liquid crystal or plasma displays, water of extreme purity is required in certain processing steps. In the final mixed bed polishing unit, special resin grades with a high degree of conversion are used. See details in a separate page.

Resins used (readily mixed as supplied):

1.7. Drinking water

Ion exchange is a valuable technology for the selective removal or certain contaminants from underground water. See details in a separate page.

2. Use of ion exchange resins in the sugar industry

Sugar cubes2.1. Softening of water used for sugar extraction

The process it that described in point 1.1 (water softening).

2.2. Softening of beet sugar juices before evaporation

The hardness of beet sugar juices results in scaling of the heat exchanger in the evaporators. To prevent it, increase the thermal efficiency and save energy, it is usual to soften the sugar juice. The plant can then operate continuously, without frequent interruptions required for de-scaling the equipment.

In this process, the type of resin used is the same as that for water softening, but the resins must be approved for use with food and resist specific stress due to the temperature and concentration of the juice.

The calcium and magnesium ions present in the sugar juice are exchanged for sodium ions from the resin. The process is applied to thin juice, i.e. after carbonation. In general, several columns operate in parallel to ensure continuous operation.

Resins used:

2.3. The NRS process

This is a clever process where the resin is regenerated with a solution of caustic soda diluted in thin juice. The basic idea is that whilst calcium hydroxide is insoluble in water, the calcium ions make a soluble complex with sucrose. The spent regenerant is recycled upstream, before the carbonation step, so that the production of waste is negligible. Moreover, the juice is not diluted in water as in the traditional softening process, because the NRS process does not include sweetening-off and sweetening-on steps. The energy balance is favourable and results in steam saving.

Resins used:

2.4. The Gryllus process

This is an older process in which the softening resin is regenerated with thick juice, which contains high concentrations of sodium. The salt consumption is thus reduced, and again, no waste is produced, since the spent regenerant is recycled.

Resins used:

2.5. Demineralisation of sugar juices before evaporation

In this process, "non-sugars" are removed from thin juice to increase the efficiency of crystalllisation, i.e. the sugar yield. In general, each kilogram of removed non-sugar produces 1.4 kg of additional sugar. Otherwise, the process is similar to water demineralisation: a strongly acidic cation exchange resin and a weakly basic anion exchange resin are used, regenerated respectively with acid and caustic soda.

Resins used:

2.6. Colour removal from cane sugar syrups after evaporation

Cane syrups usually contain many organic compounds imparting colour to the crystallised sugar and reducing the crystallisation yield. The colour removal process uses strongly basic anion exchange resins, regenerated with a sodium chloride solution. These resins are macroporous, so that high molecular mass compounds can be removed. The most efficient method uses two columns in series, the first one filled with acrylic resin, the second, polishing column with styrenic resin.

Resins used:

2.7. The Quentin process

Crystallisation of beet sugar is partially inhibited by the potassium and sodium ions contained in the juice, so that large quantities of sugar remain in the molasses after crystallisation. Magnesium being less "melassigenous" than sodium or potassium, the idea is to pass the thin juice through a column of strongly acidic cation exchange resin in the magnesium form. This increases the production of whit sugar and reduces the quantity of molasses.

Resins used:

2.8. Sugar recovery from molasses

This process is based on ion exclusion, a kind of ion exchange chromatography using fine mesh, uniform particle size resins. It separates sugar from non-sugars and increases the recovery of sugar contained in the molasses.

Resins used:

2.9. Sucrose inversion

Sucrose (common sugar) is a di-saccharide. In an acidic environment, the sucrose molecule splits into two mono-saccharides: glucose and fructose, in equal proportions. Invert sugar has a more powerful sweetening power than sucrose (1.15 vs. 1.0) , and a lower tendency to crystallise, an important feature for some industrial food products. Inversion is produced by passing sugar syrup through a low cross-linked strongly acidic cation exchange resin in the H+ form.

Resins used:

2.10. Chromatographic separation

As fructose has a higher sweetening power than glucose (1.3 vs. 0.7), invert sugar syrups can be enriched with fructose by passing the syrup through a fine mesh, very uniform strongly acidic cation exchange resin in the calcium form. As the syrup stream moves down the column, fructose moves more slowly than glucose. This results in separated bands of higher purity of each component within the column. The fructose fraction is recovered separately in view of its commercial value. The glucose fraction can be either sold as a glucose syrup, or isomerised enzymatically to produce more fructose.

Resins used:

2.11. Glucose demineralisation

Glucose syrups are demineralised to increase purity. The principle is identical to that of water or sugar demineralisation. In view of the high concentration and high temperature of the syrups, resins with a good resistance to these stresses must be used.

Resins used:


3. Examples of other applications in the food industry

Petits-Suisses3.1. Whey demineralisation

Whey, a by-product of cheese production, contains valuable proteins and is used in the food industry. It is demineralised to increase purity. Again, the principle is the same as that of water or sugar demineralisation.

Resins used:

3.2. Beverages

There are several applications in this area:

3.3. Treatment of fruit juices

3.4. Recovery of polyphenols

Polyphenols are praised today for their anti-oxidant properties. They are found in many types of fruit, such as berries or red grape. Anthocyanins are polyphenols that can be recovered from grape must.

Resins used:

3.5. Citric acid

This acid is used as a preservative in many industrial food products. It is produced by fermentation. Its purification requires ion exchange demineralisation.

Resins used:

3.6.Aminoacids

L-lysine and other essential aminoacids (not produced by the human body) are produced by fermentation. Lysine is recovered from the fermentation broth with a cation exchange resin in ammonium form.

Resins used:

3.7. Sorbitol demineralisation

Sorbitol is a polyol, a powerful sweetener and emollient used for instance in chewing gum. It can be produced by hydrogenation of glucose or by enzymatic processes. The final product often requires demineralisation.

Resins used:

3.8. Gelatine demineralisation

Gelatine is produced from the collagen present in pig skin and bones. To produce high purity gelatine, demineralisation is required.

Resins used:


4. Some applications in the chemical industry

Tissot4.1. Recovery and removal of metals

In surface finishing and plating shops, metals can be recovered or removed:

Other examples:

4.2. Production of chlorine and caustic soda

These chemicals are produced by electrolysis of saturated brine. In the production process, the absence of divalent metals is critical. A selective chelating resin is thus used to remove them (principally calcium), which reduces the initial calcium concentration from 10 – 20 mg/L down to a very low level, smaller than 20 µg/L.

Resins used:

4.3. Phenol

Two applications:

Resins used:

4.4. Hydrogen peroxide purification

Resins are used in two different processes:

In both cases, the product quality is excellent, with residuals of just a few µg/L. Caution: hydrogen peroxide (H2O2) is a powerful oxidant, and serious steps must be taken in both processes to avoid accidents.

Resins used:

4.5. Removal of aldehydes

Strongly basic anion exchange resins in the bisulfite form can remove aldehydes from various aqueous solutions. The bisulfite ion forms an addition product with the aldehyde. Here the example of formaldehyde:

R+HSO3 + HCHO —> R+HOCH2SO3

The resin is regenerated with a 5 % sodium hydrogen sulphite solution (NaHSO3).

4.6. Selective removal of various elements

I have built up a periodic system of the elements (Mendeleev table) with brief information about the removal of several ions (mostly metals) with resins.

5. Catalysis

A catalyst is a substance that increases the rate of approach to equilibrium of a chemical reaction without being substantially consumed in the reaction.

Petrol fillingIn the majority of processes where a mineral acid was previously used as a catalyst — notably in the petrochemical industry — a strongly acidic cation exchange resin in the H+ form is now used instead. These resin must operate under stressful conditions — often at temperatures between 130 and 170 °C — and display an acidity as high as possible.

A few typical examples are shown below.

5.1. Alkylation

Product Octylphenol
Reactants Octane + phenol
Catalyst Amberlyst 15Dry
Temperature 100 – 120 °C

5.2. Condensation

Product Bisphenol A
Reactants Acetone + phenol
Catalyst Amberlyst 131
Temperature 60 – 80 °C

5.3. Esterification

Product Dimethyl maleate
Reactants Maleic anhydride
Catalyst Amberlyst 46
Temperature 110 °C

5.4. Etherification

Product Methyl-ter-butyl ether (MTBE)
Reactants Isobutylene + methanol
Catalyst Amberlyst 35
Temperature 40 – 80 °C

5.5. Dehydration

Product Isobutylene
Reactant Isobutanol
Catalyst Amberlyst 35
Temperature 70 – 80 °C

5.6. Hydrogenation

Product Methyl isobutyl ketone (MIBK)
Reactant Acetone
Catalyst Amberlyst CH28 (palladium-doped catalyst)
Temperature 130 – 140 °C

6. Pharmaceutical industry

GelulesThere are various and complex applications. As the pharmaceutical industry is intrinsically secretive, few details are known. Nevertheless, let us mention a few examples:

6.1. Extraction and purification of antibiotics

Various antibiotics use ion exchange and adsorbent resins in their production process. The objective is to purify them after extraction from fermentation broths. Examples: streptomycin, gentamycin, cephalosporin, tetracyclin.

Resins used:

6.2. Slow-release formulations

Powdered, highly purified ion exchange resins are used as excipients in pharmaceutical formulations. The active ingredient is adsorbed on the resin and is released more slowly in the body than it would if it were present in their original state.

Resins used:

6.3. Resins used as drugs

The same resin types can be used as active substances in the medicine. It is obvious that they must meet very stringent specifications and be approved by health authorities. Let us mention two examples:

Resins used:

6.4. Taste-masking

Similar resins are used to mask the unpleasant taste oir smell of a drug.

6.5. Production chromatography

The chromatographic separation of various molecules used as active ingredients can be done with very fine particle size resins instead of silica gels or other media.

Resins used:


7. Miscellaneous applications

Uranium mine7.1. Mining industry

The most significant application, involving thousands of cubic metres of resin, is uranium extraction. The crushed ore is treated with sulphuric acid, which brings the uranium in solution as uranium sulphate. The pregnant solution is passed through beds of strongly basic anion exchange resins, which displays a high affinity for the uranium sulphate complex.

Resins used:

7.2. Enzyme immobilisation

In enzymatic reactions, it is more convenient to immobilise the enzyme on a support rather than add it to the reaction medium. Ion exchange resins are particularly suitable for this application.

Resins used:

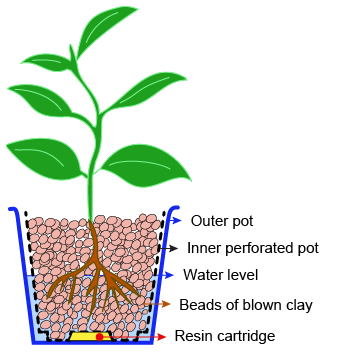

7.3. Hydroculture

Cation and anion exchange resins are used to retain plant nutrients in hydroponic culture: ammonium, potassium, iron, zinc (cations) as well as nitrate and phosphate (anions). Oligoelements are also loaded unto the resin. This technique allows the nutrients to be released slowly as a function of the plant requirements. An overdose of fertilizer is made impossible.

See details in another page.

Resins used:

De-oiling7.4. Oil removal by coalescence

A special resin with oleophilic functionality is used for the removal of oil traces in condensates and other contaminated solutions. The water flows upward through the resin bed. Oil droplets are formed at the surface of the resin beads, and when they reach a critical size, they flow up to the top of the column. The resin does not require regeneration, only occasional washing.
De-oiling

Resin used: AmberliteTM ROC110

The tail marked "b" is the oleophilic part of the functional group that is attached at the other end ("a") to the resin structure.




Trademarks

Amberjet, Amberlite, Ambersep, Amberlyst, Amberchrom, Amberzyme, Dowex, Duolite and Imac are ion exchange and adsorbent resin trademarks of Dow-DuPont.
Lewatit is a resin trademark of Lanxess.
